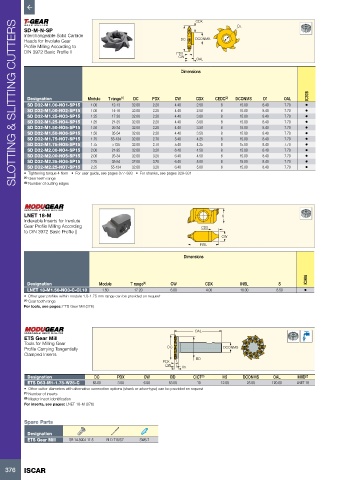

Page 378 - ISCAR(MILLINGCATALOG 38_2021)

CDX
SLOTTING & SLITTING CUTTERS
D1
SD-M-N-SP
Interchangeable Solid Carbide
Heads for Involute Gear DC DCONMS
Profile Milling According to
DIN 3972 Basic Profile ll PDX
CW OAL

Dimensions

IC908
Designation Module T range (1) DC PDX CW CDX CEDC (2) DCONMS D1 OAL
SD D32-M1.00-NO1-SP15 1.00 12-13 32.00 2.20 4.40 2.50 8 15.00 8.40 7.70 •
SD D32-M1.00-NO2-SP15 1.00 14-16 32.00 2.20 4.40 2.50 8 15.00 8.40 7.70 •
SD D32-M1.25-NO3-SP15 1.25 17-20 32.00 2.20 4.40 3.00 8 15.00 8.40 7.70 •
SD D32-M1.25-NO4-SP15 1.25 21-25 32.00 2.20 4.40 3.00 8 15.00 8.40 7.70 •
SD D32-M1.50-NO5-SP15 1.50 26-34 32.00 2.20 4.40 3.50 8 15.00 8.40 7.70 •
SD D32-M1.50-NO6-SP15 1.50 35-54 32.00 2.20 4.40 3.50 8 15.00 8.40 7.70 •
SD D32-M1.75-NO7-SP15 1.75 55-134 32.00 2.70 5.40 4.25 8 15.00 8.40 7.70 •
SD D32-M1.75-NO8-SP15 1.75 >134 32.00 2.70 5.40 4.25 8 15.00 8.40 7.70 •
SD D32-M2.00-NO4-SP15 2.00 21-25 32.00 3.20 6.40 4.50 8 15.00 8.40 7.70 •
SD D32-M2.00-NO5-SP15 2.00 26-34 32.00 3.20 6.40 4.50 8 15.00 8.40 7.70 •
SD D32-M2.25-NO6-SP15 2.25 35-54 32.00 3.20 6.40 5.00 8 15.00 8.40 7.70 •
SD D32-M2.25-NO7-SP15 2.25 55-134 32.00 3.20 6.40 5.00 8 15.00 8.40 7.70 •
• Tightening torque 4 Nxm • For user guide, see pages 377-383 • For shanks, see pages 329-331
(1) Gear teeth range
(2) Number of cutting edges

LNET 18-M S
Indexable Inserts for Involute
Gear Profile Milling According CDX
to DIN 3972 Basic Profile ||
CW
INSL

Dimensions

IC908
Designation Module T range (1) CW CDX INSL S
LNET 18-M1.50-NO3-C-CL10 1.50 17-20 6.00 4.00 18.00 8.50 •
• Other gear profiles within module 1.0-1.75 mm range can be provided on request
(1) Gear teeth range
For tools, see pages: ETS Gear Mill (376)

OAL

ETS Gear Mill
Tools for Milling Gear
Profile Carrying Tangentially DC DCONMS
Clamped Inserts
BD
PDX
CW
H5
Designation DC PDX CW BD CICT (1) H5 DCONMS OAL MIID (2)
ETS D63-M1-1.75-W25-C 63.00 3.00 6.00 53.50 10 12.00 25.00 120.00 LNET 18
• Other cutter diameters with alternative connection options (shank or arbor-type) can be provided on request
(1) Number of inserts
(2) Master insert identification
For inserts, see pages: LNET 18-M (376)

Spare Parts
Designation
ETS Gear Mill SR 14-500-L11.5 BLD T15/S7 SW6-T
