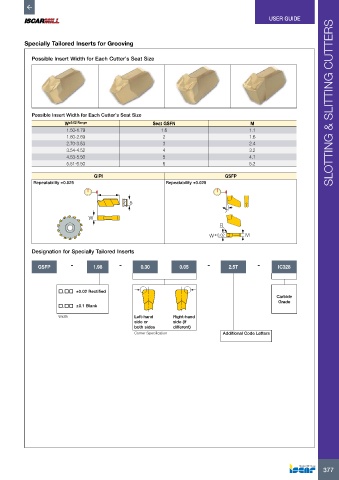

USER GUIDE




          Specially Tailored Inserts for Grooving

            Possible Insert Width for Each Cutter’s Seat Size










            Possible Insert Width for Each Cutter’s Seat Size                                                         SLOTTING & SLITTING CUTTERS
                        W ±0.02 Range                  Seat GSFN                         M
                        1.50-1.79                         1.6                            1.1
                        1.80-2.69                         2                              1.6
                        2.70-3.53                         3                              2.4
                        3.54-4.52                         4                              3.2
                        4.53-5.50                         5                              4.1
                        5.51-6.50                         6                              5.2

                                  GIPI                                          GSFP
             Repeatability ±0.025                          Repeatability ±0.025


                                               55
                                                                               7˚7˚
                                WW
                                                                              RR
                                                                            ±±
                                                                           W
                                                                          W 0.020.02   M M
            Designation for Specially Tailored Inserts


              GSFP        -       1.98     -      0.30          0.05      -      2.5T      -       IC328



                      . ±0.02 Rectified
                                                                                                  Carbide
                                                                                                   Grade
                      . ±0.1 Blank
                      Width                     Left-hand     Right-hand
                                                side or       side (If
                                                both sides    different)
                                                Corner Specification           Additional Code Letters
