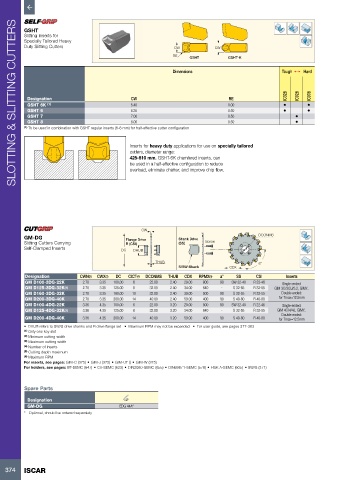

P. 376

SLOTTING & SLITTING CUTTERS

          GSHT
          Slitting Inserts for
          Specially Tailored Heavy
          Duty Slitting Cutters                               CW            CW
                                                              RE    GSHT         GSHT-K

                                                              Dimensions                            Tough 1   Hard



                                                                                                      IC328  IC928  IC908
           Designation                         CW                                RE
           GSHT 6K  (1)                        5.40                              0.00                •       •
           GSHT 6                              6.35                              0.50                •       •
           GSHT 7                              7.00                              0.50                    •
           GSHT 8                              8.00                              0.50                    •
          (1)  To be used in combination with GSHT regular inserts (6-8 mm) for half-effective cutter configuration

                                               Inserts for heavy duty applications for use on specially tailored
                                               cutters, diameter range:
                                               425-810 mm. GSHT-6K chamfered inserts, can
                                               be used in a half-effective configuration to reduce
                                               overload, eliminate chatter, and improve chip flow.











                                                   CW
                                                                                            DCONMS
          GM-DG
            Slitting Cutters Carrying        Flange Drive       Shank Drive   Screw
                                                                (SS)
                                             R (CSI)
          Self-Clamped Inserts              DC  DHUB
                                                        THUB                                a°
                                                                S/SW-Shank        CDX

          Designation        CWN(2)  CWX(3)  DC  CICT(4)  DCONMS  THUB  CDX  RPMX(5)  a°  SS  CSI    Inserts
          GM D100-3DG-22K     2.70  3.35  100.00  6   22.00  2.40  29.00  800  90  SW 32-40  R 22-46  Single-ended:
          GM D125-3DG-32K(1)  2.70  3.35  125.00  8   32.00  2.40  34.00  640  -   S 32-55  R 32-55  GIM 3C/3/3J/3.2, GIMY..
          GM D160-3DG-32K     2.70  3.35  160.00  10  32.00  2.40  39.00  500  90  S 32-55  R 32-55  Double ended:
          GM D200-3DG-40K     2.70  3.35  200.00  14  40.00  2.40  59.00  400  90  S 40-80  R 40-80  for Tmax=12.5mm
          GM D100-4DG-22K     3.36  4.35  100.00  6   22.00  3.20  29.00  800  90  SW 32-40  R 22-46  Single-ended:
          GM D125-4DG-32K(1)  3.36  4.35  125.00  8   32.00  3.20  34.00  640  -   S 32-55  R 32-55  GIM 4C/4/4J, GIMY..
                                                                                                    Double ended:
          GM D200-4DG-40K     3.36  4.35  200.00  14  40.00  3.20  59.00  400  90  S 40-80  R 40-80  for Tmax=12.5mm
          •  DHUB refers to SW/S drive shanks and R drive flange set   •  Maximum RPM may not be exceeded   •  For user guide, see pages 377-383
          (1)  Only one key slot
          (2)  Minimum cutting width
          (3)  Maximum cutting width
          (4)  Number of inserts
          (5)  Cutting depth maximum
          (6)  Maximum RPM
          For inserts, see pages: GIM-C (375) • GIM-J (375) • GIM-UT () • GIM-W (375)
          For holders, see pages: BT-SEMC (647) • C#-SEMC (623) • DIN2080-SEMC (655) • DIN69871-SEMC (578) • HSK A-SEMC (605)  • SW/S (371)


          Spare Parts

           Designation
           GM-DG                           EDG 44A*
          *  Optional, should be ordered separately
