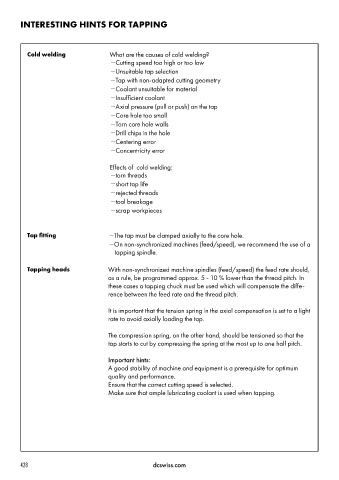

INTERESTING HINTS FOR TAPPING





           Cold welding                 What are the causes of cold welding?
                                         Cutting speed too high or too low
                                         Unsuitable tap selection
                                         Tap with non-adapted cutting geometry
                                         Coolant unsuitable for material
                                         Insufficient coolant
                                         Axial pressure (pull or push) on the tap
                                         Core hole too small
                                         Torn core hole walls
                                         Drill chips in the hole
                                         Centering error
                                         Concentricity error


                                        Effects of  cold welding:
                                         torn threads
                                         short tap life
                                         rejected threads
                                         tool breakage
                                         scrap workpieces




           Tap fitting                   The tap must be clamped axially to the core hole.
                                        On non-synchronized machines (feed/speed), we recommend the use of a
                                         tapping spindle.


           Tapping heads               With non-synchronized machine spindles (feed/speed) the feed rate should,
                                       as a rule, be programmed approx. 5 - 10 % lower than the thread pitch. In
                                       these cases a tapping chuck must be used which will compensate the diffe-
                                       rence between the feed rate and the thread pitch.

                                       It is important that the tension spring in the axial compensation is set to a light
                                       rate to avoid axially loading the tap.


                                       The compression spring, on the other hand, should be tensioned so that the
                                       tap starts to cut by compressing the spring at the most up to one half pitch.


                                       Important hints:
                                       A good stability of machine and equipment is a prerequisite for optimum
                                       quality and performance.
                                       Ensure that the correct cutting speed is selected.
                                       Make sure that ample lubricating coolant is used when tapping.
