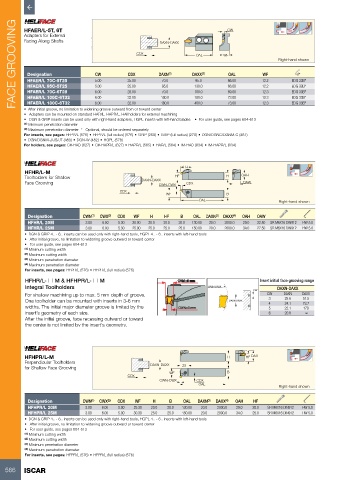

Page 568 - ISCAR(TURNING-CATALOG-42-2022)
P. 568

FACE GROOVING  HFAER/L-5T, 6T  CW       25.00  CDX  DAXN (1)   DAXX (2)  WF CW         WF    Right-hand shown
          Adapters for External
          Facing Along Shafts
                                                         DAXN-DAXX

                                                                      OAL


                                                                                 OAL
                                              CDX
           Designation
           HFAER/L 70C-5T25
                                  5.00
                                                                                             12.2
                                                                                                       EDG 33B*
                                                                      95.0
                                                          70.0
                                                                                 66.00
           HFAER/L 95C-5T25
                                              25.00
                                                                                 66.00
                                                          95.0
                                                                     130.0
                                                                                             12.2
                                                                                                       EDG 33B*
                                  5.00
           HFAER/L 70C-6T28
                                              28.00
                                                          70.0
                                  6.00
                                                                     180.0
                                                          100.0
                                                                                                       EDG 33B*
                                              32.00
                                                                                             12.3
                                                                                 73.00
                                  6.00
           HFAER/L 100C-6T32
                                              32.00
                                  6.00
                                                                                                       EDG 33B*
           HFAER/L 180C-6T32
                                                                     400.0
                                                                                             12.3
                                                          180.0
                                                                                 73.00
          •  After initial groove, no limitation to widening groove outward from or toward center     100.0  69.00  12.3  EDG 33B*
          •   Adapters can be mounted on standard HAR/L, HAPR/L, HAI holders for external machining
          •   DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades    •  For user guide, see pages 604-613
          (1)  Minimum penetration diameter
          (2)  Maximum penetration diameter  *  Optional, should be ordered separately
          For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481)
          •  DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578)
          For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634)

                                                                  LH
          HFHR/L-M
          Toolholders for Shallow                  DAXN-DAXX  HF                 H    OAH
          Face Grooving                                  CWN-CWX  CDX                 OAW
                                           CDX
                                                           WF                    B
                                                                       OAL                         Right-hand shown
           Designation        CWN (1)  CWX (2)  CDX  WF  H  HF  B    OAL  DAXN (3)  DAXX (4)  OAH  OAW
           HFHR/L 20M          3.00  6.00  5.30  20.00  20.0  20.0  20.0  130.00  20.0  2000.0  29.0  22.50  SR M6X16 DIN912  HW 5.0
           HFHR/L 25M          3.00  6.00  5.30  25.00  25.0  25.0  25.0  150.00  20.0  2000.0  34.0  27.50  SR M6X16 DIN912  HW 5.0
          •  DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools
          •   After initial groove, no limitation to widening groove outward or toward center
          •   For user guide, see pages 604-613
          (1)  Minimum cutting width
          (2)  Maximum cutting width
          (3)  Minimum penetration diameter
          (4)  Maximum penetration diameter
          For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576)
          HFHR/L- o M & HFHPR/L- o M                                                        Insert initial face grooving range
          Integral Toolholders                                            DAXN-DAXX               DAXN-DAXX
                                                                                          CW
          For shallow machining up to max. 5 mm depth of groove.                               CW    DAXN  DAXX
          One toolholder can be mounted with inserts in 3-6 mm                   DAXN-DAXX     3 4   25.6  51.5
                                                                                                     24.1
                                                                                                           73.7
          widths. The initial major diameter groove is limited by the                          5     22.1   170
          insert’s geometry of each size.                                                      6     20.8    ∞
          After the initial groove, face recessing outward or toward
           the center is not limited by the insert’s geometry.

          HFHPR/L-M                                                              H     HF  OAH
          Perpendicular Toolholders                   DAXN-DAXX
          for Shallow Face Grooving                              25
                                                             WF                  B
                                              CDX
                                                         CWN-CWX      CDX
                                                                       OAL
                                                                                                   Right-hand shown
           Designation        CWN (1)  CWX (2)  CDX  WF  H  B    OAL  DAXN (3)  DAXX (4)  OAH  HF
           HFHPR/L 20M         3.00  6.00  5.00  25.30  20.0  20.0  130.00  20.0  2000.0  29.0  20.0  SR M6X16 DIN912  HW 5.0
           HFHPR/L 25M         3.00  6.00  5.00  30.30  25.0  25.0  150.00  20.0  2000.0  34.0  25.0  SR M6X16 DIN912  HW 5.0
          •  DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools
          •   After initial groove, no limitation to widening groove outward or toward center
          •   For user guide, see pages 604-613
          (1)  Minimum cutting width
          (2)  Maximum cutting width
          (3)  Minimum penetration diameter
          (4)  Maximum penetration diameter
          For inserts, see pages: HFPR/L (576) • HFPR/L (full radius) (576)
