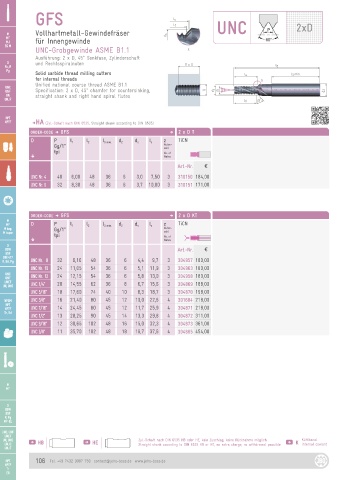

Page 106 - JBO-Katalog-2022

GFS

M Vollhartmetall-Gewindefräser UNC 2xD
MF
M
MJ für Innengewinde
EG M
UNC-Grobgewinde ASME B1.1
Ausführung: 2 x D, 45° Senkfase, Zylinderschaft
G und Rechtsspiralnuten
G
Rc, R
Pg
Solid carbide thread milling cutters
for internal threads
Unified national coarse thread ASME B1.1
UNC
UNF Specification: 2 x D, 45° chamfer for countersinking, d s
UNC straight shank and right hand spiral flutes
UN
UNJF
NPT
NPT
NPTF DHA (Zyl.-Schaft nach DIN 6535, Straight shank according to DIN 6535)
ORDER-CODE D GFS D 2 x D T
D P l 1 l 2 l 3 min. d 2 d s l s z TiCN
Gg/1“ Nuten-
zahl
tpi No. of
G flutes
Art.-Nr. a
UNC Nr. 4 40 6,00 48 36 6 3,0 7,50 3 310150 184,00
UNC Nr. 6 32 8,30 48 36 6 3,7 10,00 3 310151 171,00

ORDER-CODE D GFS D 2 x D KT
M
MF D P l 1 l 2 l 3 min. d 2 d s l s z TiCN
M keg. Gg/1“ Nuten-
M taper zahl
tpi No. of
G flutes
G
BSW Art.-Nr. a
BSF
DIN 477
R, BA, Pg UNC Nr. 8 32 9,10 48 36 6 4,4 9,7 3 304957 180,00
UNC Nr. 10 24 11,05 54 36 6 5,1 11,9 3 304963 180,00
UNC UNC Nr. 12 24 12,15 54 36 6 5,8 13,0 3 304958 180,00
UNF
UNEF UNC 1/4“ 20 14,55 62 36 8 6,7 15,6 3 304869 188,00
UN, UNS
UNC 5/16“ 18 17,60 74 40 10 8,3 18,7 3 304870 198,00
NPSM UNC 3/8“ 16 21,40 80 45 12 10,0 22,6 4 301684 218,00
NPT
NPTF UNC 7/16“ 14 24,45 80 45 12 11,7 25,9 4 304871 218,00
Tr, Rd
UNC 1/2“ 13 28,25 90 45 14 13,3 29,8 4 304872 311,00
UNC 9/16“ 12 30,65 102 48 16 15,0 32,3 4 304873 361,00
UNC 5/8“ 11 35,70 102 48 18 16,7 37,6 4 304665 454,00

M
MF

G
BSW
BSF
R, Pg
MF-EL
UNC, UNF
UNEF
UN, UNS HB HE Zyl.-Schaft nach DIN 6535 HB oder HE, kein Zuschlag, keine Rücknahme möglich Kühlkanal
UNJC Straight shank according to DIN 6535 HB or HE, no extra charge, no withdrawal possible K internal coolant
UNJF
NPT 106 Tel. +49 7432 9087 750 contact@johs-boss.de www.johs-boss.de
